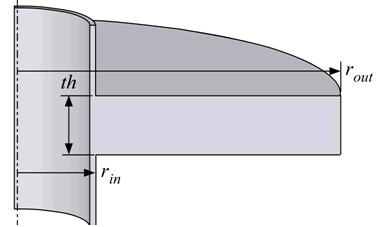

Annular Rectangular Fin





Dimensional

The function eta_fin_annular_rect calculates the fin efficiency of an annular fin.  The function then calls a corresponding non-dimensional function, which determines the fin efficiency.  Note that the fin surface area that should be used with this fin efficiency is:





Inputs:

r_in - inner diameter of annular disk

r_out - outer diameter of annular disk

th - thickness of annular disk

h - heat transfer coefficient

k - conductivity of fin material



Example:

$UnitSystem SI K Pa J

r_in=0.01[m]

r_out=0.03 [m]

th=0.004 [m]

h=60 [W/m^2-K]

k=200 [W/m-K]

eta=eta_fin_annular_rect(th, r_in, r_out, h, k)



{Solution: eta=0.9666}





Non-dimensional: eta_fin_annular_rect_ND(mr_out, r_in\r_out)

Function eta_fin_annular_rect_ND returns the fin efficiency of an annular fin given the product of the fin parameter, m, and out radius, r_out and the ratio of the inner to outer radii.  The first parameter is defined as:
